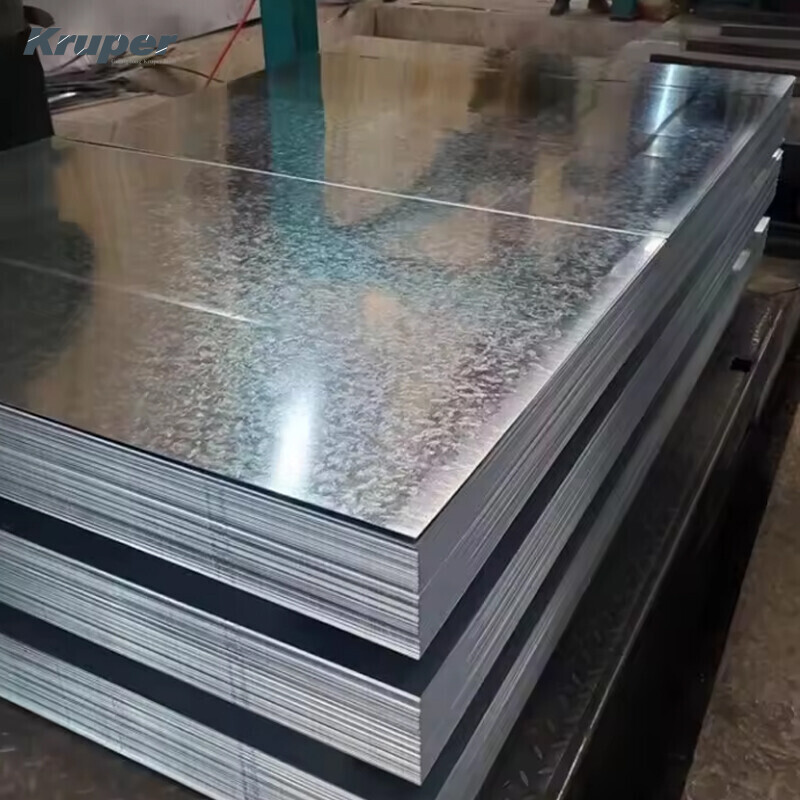

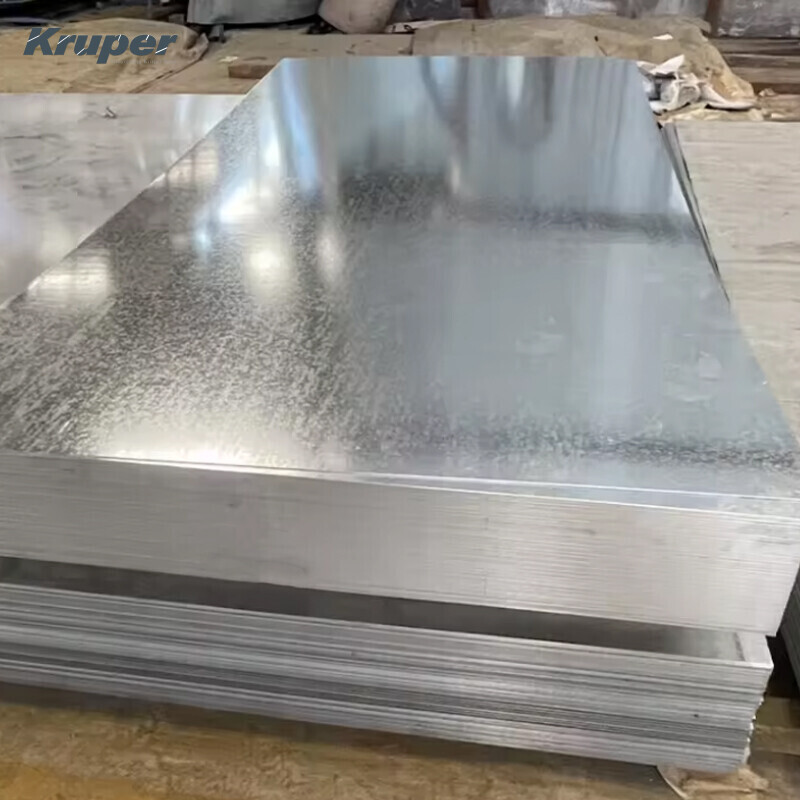

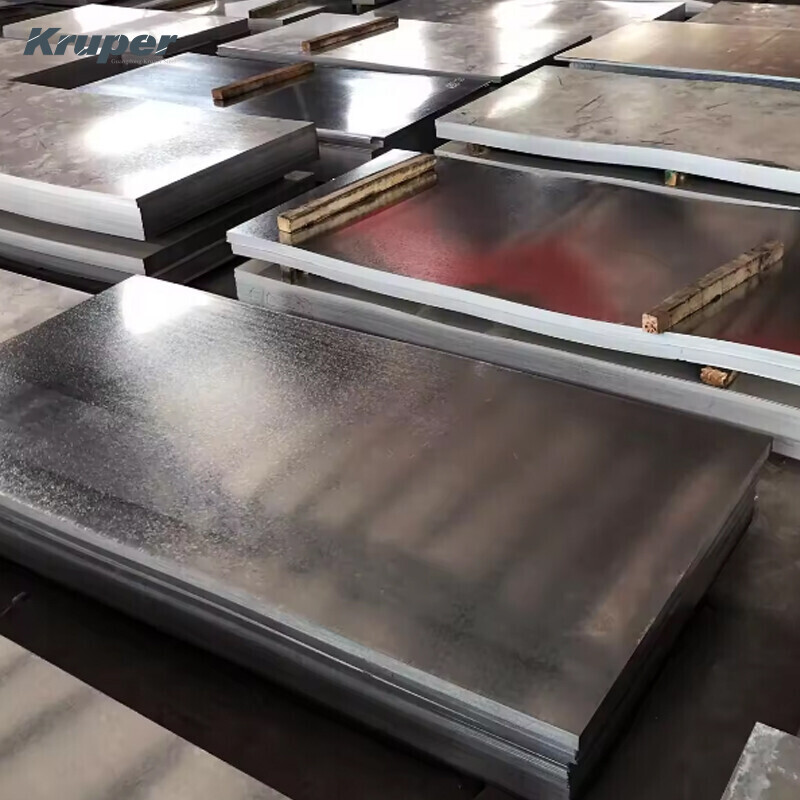

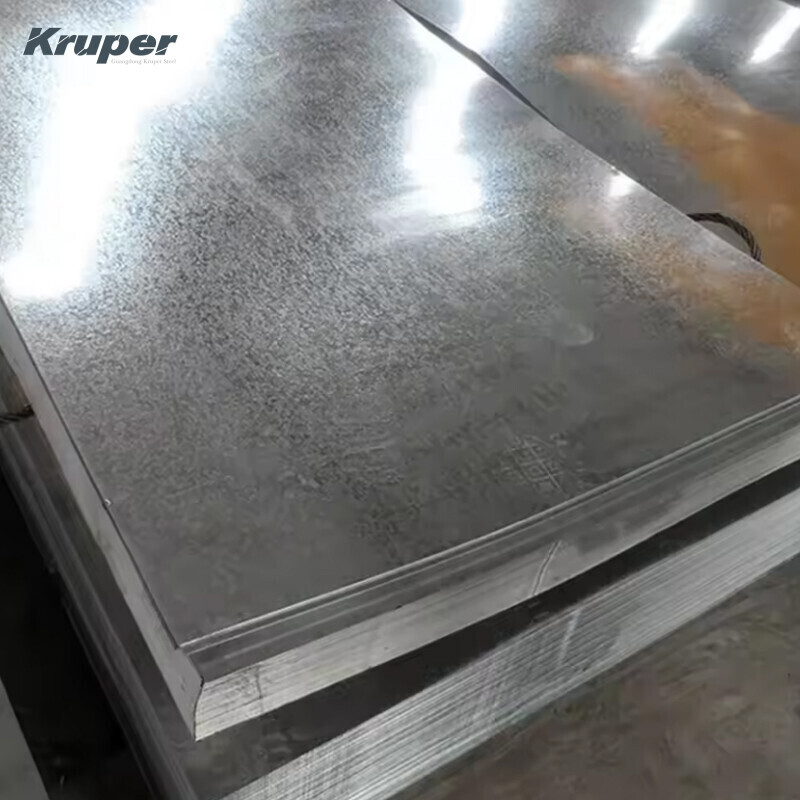

Galvalume steel sheet

Galvalume steel sheet is a type of steel that is coated with zinc for protection by an electroplating process. The galvanized layer is applied to cold rolled steel at low temperatures. So it is also known as cold galvanized steel.

+86 13411839303

+86 13411839303

inquriy@krupersteel.com

Product Description

Product Parameters

Product Name	Galvalume Steel Sheet
Thickness	0.12mm-6.00mm， or customized
Width	600mm-1500mm， or customized
Length	1m-12m, Support Customization
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating	30-185g/m²
Content of Al-Zn Coating	Al: 55%, Zn: 43.5%, Si: 1.5%

Chemical Composition

Al	Zn	Si	Fe	Cu	Cd	Pb	Sn	Ni	Close Cr
55-58	41-43	1.5-2	0.25	0.03	0.05	0.01	0.05	0.05	0.05

Mechanical Properties

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-
